MySQL Group Replication 能比较方便的实现高可用，但是 iTop 文档里明确说不支持多主的 MySQL 集群：

Galera clusters with multiple masters are NOT supported by iTop, because such clusters do not properly implement the GET_LOCK MySQL function (for more information: Galera cluster known limitations).

MGR 文档里也明确说不支持 GET_LOCK：

Table Locks and Named Locks. The certification process does not take into account table locks (see Section 13.3.6, “LOCK TABLES and UNLOCK TABLES Statements”) or named locks (see GET_LOCK()).

那么到底是哪些功能会受到影响呢？

Contents

1 架构
2 代码分析
3 测试用例
4 结论
5 参考资料

架构

计划分别测试 iTop 使用单主（Single Primary）和多主（Multi Primary）模式的 MGR 集群，以及单节点，对比结果。以下是 MGR 单主和多主的架构图。

代码分析

搜索代码，可知 GET_LOCK 主要在 iTopMutex 类的 Lock() 方法里用到。

/**
* Acquire the mutex. Uses a MySQL lock. <b>Warn</b> : can have an abnormal behavior on MySQL clusters (see R-016204)
*
* @see https://dev.mysql.com/doc/refman/5.7/en/miscellaneous-functions.html#function_get-lock
*/
public function Lock()
{
if ($this->bLocked)
	{
	// Lock already acquired
	return;
	}
	if (self::$aAcquiredLocks[$this->sName] == 0)
	{
	do
	{
	$res = $this->QueryToScalar("SELECT GET_LOCK('".$this->sName."', 3600)");

/**

* Acquire the mutex. Uses a MySQL lock. <b>Warn</b> : can have an abnormal behavior on MySQL clusters (see R-016204)

* @see https://dev.mysql.com/doc/refman/5.7/en/miscellaneous-functions.html#function_get-lock

public function Lock()

{

if ($this->bLocked)

{

// Lock already acquired

return;

}

if (self::$aAcquiredLocks[$this->sName] == 0)

{

$res = $this->QueryToScalar("SELECT GET_LOCK('".$this->sName."', 3600)");

继续搜索 ->Lock(，找到以下文件：

./core/counter.class.inc.php:		$oiTopMutex->Lock();
./core/log.class.inc.php:			$oLock->Lock();
./core/ormlinkset.class.inc.php:		$oMtx->Lock();
./core/ownershiplock.class.inc.php:		$oMutex->Lock();
./core/ownershiplock.class.inc.php:		$oMutex->Lock();
./core/ownershiplock.class.inc.php:		$oMutex->Lock();
./core/ownershiplock.class.inc.php:		$oMutex->Lock();
./core/ownershiplock.class.inc.php:		$oMutex->Lock();
./datamodels/2.x/itop-backup/ajax.backup.php:				$oRestoreMutex->Lock();
./datamodels/2.x/itop-backup/main.itop-backup.php:		$oMutex->Lock();
./datamodels/2.x/itop-core-update/src/Service/CoreUpdater.php:		$oMutex->Lock();
./datamodels/2.x/itop-hub-connector/ajax.php:	$oMutex->Lock();
./synchro/synchro_import.php:		$oMutex->Lock();
./synchro/synchrodatasource.class.inc.php:			$oMutex->Lock();

./core/counter.class.inc.php: $oiTopMutex->Lock();

./core/log.class.inc.php: $oLock->Lock();

./core/ormlinkset.class.inc.php: $oMtx->Lock();

./core/ownershiplock.class.inc.php: $oMutex->Lock();

./datamodels/2.x/itop-backup/ajax.backup.php: $oRestoreMutex->Lock();

./datamodels/2.x/itop-backup/main.itop-backup.php: $oMutex->Lock();

./datamodels/2.x/itop-core-update/src/Service/CoreUpdater.php: $oMutex->Lock();

./datamodels/2.x/itop-hub-connector/ajax.php: $oMutex->Lock();

./synchro/synchro_import.php: $oMutex->Lock();

./synchro/synchrodatasource.class.inc.php: $oMutex->Lock();

下面基于 core/counter.class.inc.php，core/ormlinkset.class.inc.php以及 core/ownershiplock.class.inc.php 来测试 MGR 的影响。其他文件基本是关于日志和备份的。暂时没有想到测试用例。

测试用例

core/counter

此文件定义了 iTopCounter 类，IncClass() 方法用到了 iTopMutex，此方法最终用在了 Ticket 的 MakeTicketRef() 里，被用户生成工单编号，即 R-000001 这种编号。

    public function MakeTicketRef()
    {
          $iNextId = ItopCounter::IncClass(get_class($this));
          $sRef = $this->MakeTicketRef($iNextId);
          $this->SetIfNull('ref', $sRef);
          $iKey = parent::DBInsertNoReload();
          return $iKey;
    }

public function MakeTicketRef()

{

$iNextId = ItopCounter::IncClass(get_class($this));

$sRef = $this->MakeTicketRef($iNextId);

$this->SetIfNull('ref', $sRef);

$iKey = parent::DBInsertNoReload();

return $iKey;

}

测试思路，并发创建工单，查看是否有重复的工单编号。编写以下 Shell 脚本：

#!/bin/bash

[ $# -lt 2 ] && echo "$0 password url" && exit 1
user=admin
password=$1
url=$2
json_data='{"operation":"core/create","comment":"test mgr","class":"UserRequest","output_fields":"id,friendlyname","fields":{"org_id":"SELECT Organization WHERE name = \"Demo\"","caller_id":{"name":"Christie", "first_name":"Agatha"},"title":"Test MGR From API", "description":"Test"}}'

curl -s "$url/webservices/rest.php?version=1.3" -d "auth_user=$user&auth_pwd=$password&json_data=$json_data"

#!/bin/bash

[ $# -lt 2 ] && echo "$0 password url" && exit 1

user=admin

password=$1

url=$2

json_data='{"operation":"core/create","comment":"test mgr","class":"UserRequest","output_fields":"id,friendlyname","fields":{"org_id":"SELECT Organization WHERE name = \"Demo\"","caller_id":{"name":"Christie", "first_name":"Agatha"},"title":"Test MGR From API", "description":"Test"}}'

curl -s "$url/webservices/rest.php?version=1.3" -d "auth_user=$user&auth_pwd=$password&json_data=$json_data"

使用 parallel 同时在 3 个 iTop 实例上并发调用：

#!/bin/bash

for id in `seq 1 100`;do echo $id;done |parallel -j 3 ./ticket-api.sh admin http://192.168.10.101 &
for id in `seq 1 100`;do echo $id;done |parallel -j 3 ./ticket-api.sh admin http://192.168.10.102 &
for id in `seq 1 100`;do echo $id;done |parallel -j 3 ./ticket-api.sh admin http://192.168.10.103 &

#!/bin/bash

for id in `seq 1 100`;do echo $id;done |parallel -j 3 ./ticket-api.sh admin http://192.168.10.101 &

for id in `seq 1 100`;do echo $id;done |parallel -j 3 ./ticket-api.sh admin http://192.168.10.102 &

for id in `seq 1 100`;do echo $id;done |parallel -j 3 ./ticket-api.sh admin http://192.168.10.103 &

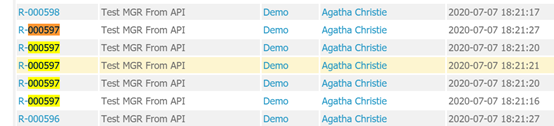

结果出现较多重复编号：

2 R-000686

3 R-000596

3 R-000685

4 R-000593

4 R-000598

5 R-000597

MGR单主和单节点未出现重复工单编号。

core/ormlinkset

OrmLinkSet 类的 DBWrite() 方法使用了 iTopMutex，DBWrite 被 DBObject 的 DBWriteLinks 调用。DBWriteLinks 又被 DBOject 的 DBInsertNoReload 和 DBUpdate 调用。

/**
 * used both by insert/update
 *
 * @internal
 *
 * @throws \CoreException
 */
private function DBWriteLinks()
{
    foreach(MetaModel::ListAttributeDefs(get_class($this)) as $sAttCode => $oAttDef)
    {
        if (!$oAttDef->IsLinkSet()) continue;
        if (!array_key_exists($sAttCode, $this->m_aTouchedAtt)) continue;
        if (array_key_exists($sAttCode, $this->m_aModifiedAtt) && ($this->m_aModifiedAtt[$sAttCode] == false)) continue;

        /** @var \ormLinkSet $oLinkSet */
        $oLinkSet = $this->m_aCurrValues[$sAttCode];
        $oLinkSet->DBWrite($this);
    }
}

/**

* used both by insert/update

* @internal

* @throws \CoreException

private function DBWriteLinks()

{

foreach(MetaModel::ListAttributeDefs(get_class($this)) as $sAttCode => $oAttDef)

{

if (!$oAttDef->IsLinkSet()) continue;

if (!array_key_exists($sAttCode, $this->m_aTouchedAtt)) continue;

if (array_key_exists($sAttCode, $this->m_aModifiedAtt) && ($this->m_aModifiedAtt[$sAttCode] == false)) continue;

/** @var \ormLinkSet $oLinkSet */

$oLinkSet = $this->m_aCurrValues[$sAttCode];

$oLinkSet->DBWrite($this);

}

测试思路，并发更新 Person 的 team_list，观察是否创建重复的 lnkPersonToTeam。编写以下 Shell 脚本：

#!/bin/bash

[ $# -lt 2 ] && echo "$0 password url" && exit 1
user=admin
password=$1
url=$2
json_data='{"operation":"core/update","comment":"test mgr","class":"Person","key":"SELECT Person WHERE name=\"Xing\" AND first_name=\"Ming\"","output_fields":"id,team_list,friendlyname","fields":{"team_list":[{"team_id":{"name":"Helpdesk"}}]}}'

curl -s "$url/webservices/rest.php?version=1.3" -d "auth_user=$user&auth_pwd=$password&json_data=$json_data" |jq .

#!/bin/bash

[ $# -lt 2 ] && echo "$0 password url" && exit 1

user=admin

password=$1

url=$2

json_data='{"operation":"core/update","comment":"test mgr","class":"Person","key":"SELECT Person WHERE name=\"Xing\" AND first_name=\"Ming\"","output_fields":"id,team_list,friendlyname","fields":{"team_list":[{"team_id":{"name":"Helpdesk"}}]}}'

curl -s "$url/webservices/rest.php?version=1.3" -d "auth_user=$user&auth_pwd=$password&json_data=$json_data" |jq .

使用 parallel 同时在3 个节点上并发操作：

#!/bin/bash

for id in `seq 1 10`;do echo $id;done |parallel -j 3 ./ormlinkset.sh admin http://192.168.10.101 &
for id in `seq 1 10`;do echo $id;done |parallel -j 3 ./ormlinkset.sh admin http://192.168.10.102 &
for id in `seq 1 10`;do echo $id;done |parallel -j 3 ./ormlinkset.sh admin http://192.168.10.103 &

#!/bin/bash

for id in `seq 1 10`;do echo $id;done |parallel -j 3 ./ormlinkset.sh admin http://192.168.10.101 &

for id in `seq 1 10`;do echo $id;done |parallel -j 3 ./ormlinkset.sh admin http://192.168.10.102 &

for id in `seq 1 10`;do echo $id;done |parallel -j 3 ./ormlinkset.sh admin http://192.168.10.103 &

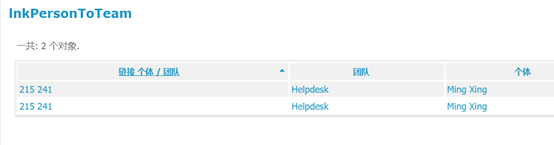

多主，单主及单节点均出现重复创建的 lnkPersonToTeam。

此项测试单节点也有问题，有可能是测试用例设计的有问题。

core/ownershiplock

/**
 * Mechanism to obtain an exclusive lock while editing an object
 *
 * @package     iTopORM
 */

/**
 * Persistent storage (in the database) for remembering that an object is locked
 */
class iTopOwnershipToken extends DBObject
{
...
}

/**
 * Utility class to acquire/extend/release/kill an exclusive lock on a given persistent object,
 * for example to prevent concurrent edition of the same object.
 * Each lock has an expiration delay of 120 seconds (tunable via the configuration parameter 'concurrent_lock_expiration_delay')
 * A watchdog (called twice during this delay) is in charge of keeping the lock "alive" while an object is being edited.
 */
class iTopOwnershipLock
{

/**

* Mechanism to obtain an exclusive lock while editing an object

* @package iTopORM

/**

* Persistent storage (in the database) for remembering that an object is locked

class iTopOwnershipToken extends DBObject

{

...

}

/**

* Utility class to acquire/extend/release/kill an exclusive lock on a given persistent object,

* for example to prevent concurrent edition of the same object.

* Each lock has an expiration delay of 120 seconds (tunable via the configuration parameter 'concurrent_lock_expiration_delay')

* A watchdog (called twice during this delay) is in charge of keeping the lock "alive" while an object is being edited.

class iTopOwnershipLock

{

主要用在 CMDBAbstractObject 的 DisplayModifyForm 和 DisplayStimulusForm 中。用于阻止并发修改。

注意到代码中检查了配置项 concurrent_lock_enabled：

$LockEnabled = MetaModel::GetConfig()->Get('concurrent_lock_enabled');

1	$LockEnabled = MetaModel::GetConfig()->Get('concurrent_lock_enabled');

可知阻止并发修改是一个可选的功能，默认是关闭的，如需使用，要在配置文件中开启[3]。此功能效果是，当有人正在编辑一个对象时，其他人浏览该对象，会提示对象被锁住，正在被某人修改，并且不显示修改按钮。

测试结果显示

MGR多主模式下不同iTop实例编辑同一对象，此功能无效
MGR多主模式下在同一iTop实例操作，此功能正常
MGR单主模式及单节点，此功能正常

结论

测试结果对照表

测试项	MGR多主	MGR单主	单节点	备注
工单编号	出现重复项	未见异常	未见异常
Ormlinkset	出现多lnk情况	出现多lnk情况	出现多lnk情况	可能测试用例错误
阻止并发修改	不同实例下异常	未见异常	未见异常

iTop MGR测试结果

因此，iTop 使用 MGR 单主模式可以在实现高可用的前提下获得最好的兼容性。
