Nginx+Lua实现Grafana集成SSO

Contents

1 基本思路
2 环境配置
3 Nginx配置
- 3.1 Main Configuration
- 3.2 Access With Out SSO
4 Full Code
5 参考资料

基本思路

Grafana开auth.proxy, Nginx+Lua控制cookie及X-WEBAUTH-USER的值 (Enable auth.proxy in Grafana, Then use Nginx+Lua to control cookie and value of X-WEBAUTH-USER).

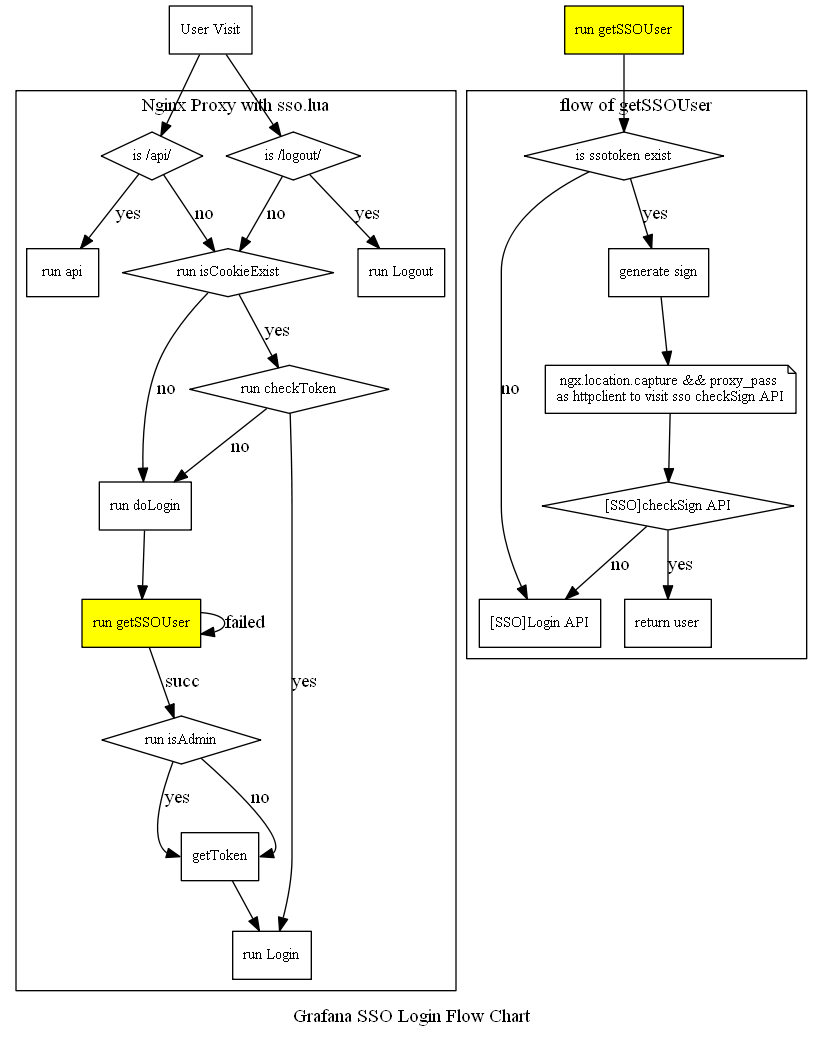

架构图

环境配置

Download and install LuaJIT，
Install Tengine 2.2.1 with configure option --with-http_lua_module --with-ld-opt="-Wl,-rpath,$LUAJIT_LIB"
Download and compile lua-cjson, then copy cjson.so to lib dir. Such as /usr/lib64/lua/5.1/

Nginx配置

Main Configuration

upstream grafana {
    server 127.0.0.1:3000;
}

server {
    listen      10.0.0.11:80;
    server_name  grafana.xxx.cn;
    access_log logs/monitor.proxy.log main;

    location @client{
        proxy_pass  http://grafana;
    }

    location ^~ /proxy/ {
        internal;   #指定规则为internal规则，防止外部请求命中此规则
        rewrite '^/proxy/(http?)/([^/]+)/(\d+)/(.*)'  /$4 break;
        proxy_pass $1://$2:$3;
    }

    location / {
        access_by_lua_file 'conf.d/grafana_sso/sso.lua';
    }
}

upstream grafana {

server 127.0.0.1:3000;

}

server {

listen 10.0.0.11:80;

server_name grafana.xxx.cn;

access_log logs/monitor.proxy.log main;

location @client{

proxy_pass http://grafana;

}

location ^~ /proxy/ {

internal; #指定规则为internal规则，防止外部请求命中此规则

rewrite '^/proxy/(http?)/([^/]+)/(\d+)/(.*)' /$4 break;

proxy_pass $1://$2:$3;

}

location / {

access_by_lua_file 'conf.d/grafana_sso/sso.lua';

}

Access With Out SSO

某种情况下可能不想挑转到sso去认证，比如某个公共的本地账号。这时可以通过Nginx配置绕过SSO认证(Sometimes we may want to login with out SSO, such as a local grafana account for public use. For this situation, we can use Nginx to bypass SSO)

server {
    listen 10.0.0.11:3030;
    server_name grafana.xxx.cn;
    access_log logs/grafana-nosso.log main;

    location / {
        proxy_pass http://127.0.0.1:3000;
    }

    location @client {
        proxy_pass http://127.0.0.1:3000;
    }

    # api访问需要被过滤，否则在开启auth.proxy的情况下任意用户都可以操作API
    # filter api access. if not , everyone can access api when auth.proxy enabled
    location /api/ {
        access_by_lua_file 'conf.d/grafana_sso/sso.lua';
    }
}

server {

listen 10.0.0.11:3030;

server_name grafana.xxx.cn;

access_log logs/grafana-nosso.log main;

location / {

proxy_pass http://127.0.0.1:3000;

}

location @client {

proxy_pass http://127.0.0.1:3000;

}

# api访问需要被过滤，否则在开启auth.proxy的情况下任意用户都可以操作API

# filter api access. if not , everyone can access api when auth.proxy enabled

location /api/ {

access_by_lua_file 'conf.d/grafana_sso/sso.lua';

}

Full Code

local secretkey = 'your secretkey'
local timeStr = os.date("%x", os.time())

function getSSOUser()
    local sso = 'https://sso/login.php'
    local mysite = 'http://monitor'
    local login_url = sso .. '?next=' .. mysite

    local request_method = ngx.var.request_method
    if "GET" == request_method then
        args = ngx.req.get_uri_args()
    elseif "POST" == request_method then
        ngx.exit(405)
    end

    -- get m_tk
    local m_tk = args['m_tk']
    if m_tk == nil then
        ngx.redirect(login_url)
    end

    -- check user token
    local time = os.time()
    local check_url = 'http/sso/8080/check.php'  -- format used by ngx.location.capture && proxy_pass(a httpclient simulation)
    local key = 'your local key'
    local cjson = require("cjson")

    -- Sign algorithm. (base on your SSO)
    local sign = ngx.md5(xxx)
    local checkSign = xxx

    --[[
    location ^~ /proxy/ {
        internal;   //指定规则为internal规则，防止外部请求命中此规则
        rewrite ^/proxy/(http?)/([^/]+)/(\d+)/(.*)     /$4 break;
        proxy_pass      $1://$2:$3;
    }
    --]]
    checkUrl = '/proxy/' .. check_url .. '?' .. checkSign

    -- simulate a httpclient use ngx.location.capture && proxy_pass
    local res = ngx.location.capture(checkUrl, {
        method = ngx.HTTP_GET,
    })

    if res.body then
        obj = cjson.decode(res.body)
        code = obj['respond']['code']
        --ngx.say(code)
        if code ~= '0' then
            --ngx.say(res.body)
            ngx.exit(401)
        end

        objects = obj['results']
        arr = ngx.decode_args(objects)
        local user = arr['u']
        return user
    else
        ngx.redirect(login_url)
    end
end


function getToken(user)
    local ctoken = ngx.md5("user:" .. user .. "&key:" .. secretkey .. timeStr)
    return ctoken
end

function checkToken()
    local user = ngx.var.cookie_x_webauth_user
    local token = ngx.var.cookie_x_webauth_token
    local ctoken = getToken(user)
    if ctoken == token then
        return true
    else
        return false
    end
end

function isCookieExist()
    local user = ngx.var.cookie_x_webauth_user
    local token = ngx.var.cookie_x_webauth_token
    if user ~= nil and token ~= nil then
        return user
    else
        return false
    end
end

function Login(user)
    --[[
    # grafana 配置文件中修改配置项 http_addr 绑定 127.0.0.1，拒绝外部访问，否则任何人都可以通过auth.proxy登录任意账号
    # http_addr must bind to 127.0.0.1, otherwise everybody can login as any account(include admin) with auth.proxy
    # The ip address to bind to, empty will bind to all interfaces
    http_addr = 127.0.0.1

    nginx 添加如下配置 (add Nginx Configuration)
    location @client {
        proxy_pass http://127.0.0.1:3000;
    }
    --]]
    ngx.req.set_header("X-WEBAUTH-USER", user)
    ngx.exec("@client")
end

-- 管理员用户
function isAdmin(user)
    if user == "xxx" then
        return "admin"
    else
        return user
    end
end

function doLogin()
    local user = getSSOUser()
    local user = isAdmin(user)
    local x_token = getToken(user)
    ngx.header['Set-Cookie'] = {'x_webauth_user =' ..  user , 'x_webauth_token = ' .. x_token}
    Login(user)
end

-- 退出
function Logout()
    if ngx.re.match(ngx.var.request_uri, "logout")  then
        ngx.header['Set-Cookie'] = {'x_webauth_user = '}
    end
end

-- api do not use auth.proxy
function api()
    if ngx.re.match(ngx.var.request_uri, "/api/") then
        ngx.req.clear_header("X-WEBAUTH-USER")
        ngx.exec("@client")
    end
end

api()
Logout()

local x_user = isCookieExist()
if not x_user then
    doLogin()
else
    if checkToken() then
        Login(x_user)
    else
        doLogin()
        --ngx.exit(401)
    end
end

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

local secretkey = 'your secretkey'

local timeStr = os.date("%x", os.time())

function getSSOUser()

local sso = 'https://sso/login.php'

local mysite = 'http://monitor'

local login_url = sso .. '?next=' .. mysite

local request_method = ngx.var.request_method

if "GET" == request_method then

args = ngx.req.get_uri_args()

elseif "POST" == request_method then

ngx.exit(405)

end

-- get m_tk

local m_tk = args['m_tk']

if m_tk == nil then

ngx.redirect(login_url)

end

-- check user token

local time = os.time()

local check_url = 'http/sso/8080/check.php' -- format used by ngx.location.capture && proxy_pass(a httpclient simulation)

local key = 'your local key'

local cjson = require("cjson")

-- Sign algorithm. (base on your SSO)

local sign = ngx.md5(xxx)

local checkSign = xxx

--[[

location ^~ /proxy/ {

internal; //指定规则为internal规则，防止外部请求命中此规则

rewrite ^/proxy/(http?)/([^/]+)/(\d+)/(.*) /$4 break;

proxy_pass $1://$2:$3;

}

--]]

checkUrl = '/proxy/' .. check_url .. '?' .. checkSign

-- simulate a httpclient use ngx.location.capture && proxy_pass

local res = ngx.location.capture(checkUrl, {

method = ngx.HTTP_GET,

})

if res.body then

obj = cjson.decode(res.body)

code = obj['respond']['code']

--ngx.say(code)

if code ~= '0' then

--ngx.say(res.body)

ngx.exit(401)

end

objects = obj['results']

arr = ngx.decode_args(objects)

local user = arr['u']

return user

else

ngx.redirect(login_url)

end

function getToken(user)

local ctoken = ngx.md5("user:" .. user .. "&key:" .. secretkey .. timeStr)

return ctoken

end

function checkToken()

local user = ngx.var.cookie_x_webauth_user

local token = ngx.var.cookie_x_webauth_token

local ctoken = getToken(user)

if ctoken == token then

return true

else

return false

end

function isCookieExist()

local user = ngx.var.cookie_x_webauth_user

local token = ngx.var.cookie_x_webauth_token

if user ~= nil and token ~= nil then

return user

else

return false

end

function Login(user)

--[[

# grafana 配置文件中修改配置项 http_addr 绑定 127.0.0.1，拒绝外部访问，否则任何人都可以通过auth.proxy登录任意账号

# http_addr must bind to 127.0.0.1, otherwise everybody can login as any account(include admin) with auth.proxy

# The ip address to bind to, empty will bind to all interfaces

http_addr = 127.0.0.1

nginx 添加如下配置 (add Nginx Configuration)

location @client {

proxy_pass http://127.0.0.1:3000;

}

--]]

ngx.req.set_header("X-WEBAUTH-USER", user)

ngx.exec("@client")

end

-- 管理员用户

function isAdmin(user)

if user == "xxx" then

return "admin"

else

return user

end

function doLogin()

local user = getSSOUser()

local user = isAdmin(user)

local x_token = getToken(user)

ngx.header['Set-Cookie'] = {'x_webauth_user =' .. user , 'x_webauth_token = ' .. x_token}

end

-- 退出

function Logout()

if ngx.re.match(ngx.var.request_uri, "logout") then

ngx.header['Set-Cookie'] = {'x_webauth_user = '}

end

-- api do not use auth.proxy

function api()

if ngx.re.match(ngx.var.request_uri, "/api/") then

ngx.req.clear_header("X-WEBAUTH-USER")

ngx.exec("@client")

end

api()

Logout()

local x_user = isCookieExist()

if not x_user then

doLogin()

else

if checkToken() then

else

doLogin()

--ngx.exit(401)

end

参考资料

1. https://www.stavros.io/posts/writing-an-nginx-authentication-module-in-lua/
2. https://blog.raintank.io/authproxy-howto-use-external-authentication-handlers-with-grafana/
3. http://blog.csdn.net/langeldep/article/details/8629906
4. http://www.cnblogs.com/kyrios/p/ngx_lua-httpclient-using-capture-and-proxy.html

1. https://www.stavros.io/posts/writing-an-nginx-authentication-module-in-lua/

2. https://blog.raintank.io/authproxy-howto-use-external-authentication-handlers-with-grafana/

3. http://blog.csdn.net/langeldep/article/details/8629906

4. http://www.cnblogs.com/kyrios/p/ngx_lua-httpclient-using-capture-and-proxy.html
