Hadoop可以在单节点上以所谓的伪分布式模式运行，此时每一个Hadoop守护进程都作为一个独立的Java进程运行。本文通过自动化脚本配置Hadoop伪分布式模式。测试环境为VMware中的Centos 6.3, Hadoop 1.2.1.其他版本未测试。
Contents
伪分布式配置脚本
包括配置core-site.xml，hdfs-site.xml及mapred-site.xml，配置ssh免密码登陆。[1]
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 |
#!/bin/bash # Usage: Hadoop伪分布式配置 # History: # 20140426 annhe 完成基本功能 # Check if user is root if [ $(id -u) != "0" ]; then printf "Error: You must be root to run this script!\n" exit 1 fi #同步时钟 rm -rf /etc/localtime ln -s /usr/share/zoneinfo/Asia/Shanghai /etc/localtime #yum install -y ntp ntpdate -u pool.ntp.org &>/dev/null echo -e "Time: `date` \n" #默认为单网卡结构，多网卡的暂不考虑 IP=`ifconfig eth0 |grep "inet\ addr" |awk '{print $2}' |cut -d ":" -f2` #伪分布式 function PseudoDistributed () { cd /etc/hadoop/ #恢复备份 mv core-site.xml.bak core-site.xml mv hdfs-site.xml.bak hdfs-site.xml mv mapred-site.xml.bak mapred-site.xml #备份 mv core-site.xml core-site.xml.bak mv hdfs-site.xml hdfs-site.xml.bak mv mapred-site.xml mapred-site.xml.bak #使用下面的core-site.xml cat > core-site.xml <<eof <?xml version="1.0"?> <?xml-stylesheet type="text/xsl" href="configuration.xsl"?> <!-- Put site-specific property overrides in this file. --> <configuration> <property> <name>fs.default.name</name> <value>hdfs://$IP:9000</value> </property> </configuration> eof #使用下面的hdfs-site.xml cat > hdfs-site.xml <<eof <?xml version="1.0"?> <?xml-stylesheet type="text/xsl" href="configuration.xsl"?> <!-- Put site-specific property overrides in this file. --> <configuration> <property> <name>dfs.replication</name> <value>1</value> </property> </configuration> eof #使用下面的mapred-site.xml cat > mapred-site.xml <<eof <?xml version="1.0"?> <?xml-stylesheet type="text/xsl" href="configuration.xsl"?> <!-- Put site-specific property overrides in this file. --> <configuration> <property> <name>mapred.job.tracker</name> <value>$IP:9001</value> </property> </configuration> eof } #配置ssh免密码登陆 function PassphraselessSSH () { #不重复生成私钥 [ ! -f ~/.ssh/id_dsa ] && ssh-keygen -t dsa -P '' -f ~/.ssh/id_dsa cat ~/.ssh/authorized_keys |grep "`cat ~/.ssh/id_dsa.pub`" &>/dev/null && r=0 || r=1 #没有公钥的时候才添加 [ $r -eq 1 ] && cat ~/.ssh/id_dsa.pub >> ~/.ssh/authorized_keys chmod 644 ~/.ssh/authorized_keys } #执行 function Execute () { #格式化一个新的分布式文件系统 hadoop namenode -format #启动Hadoop守护进程 start-all.sh echo -e "\n========================================================================" echo "hadoop log dir : $HADOOP_LOG_DIR" echo "NameNode - http://$IP:50070/" echo "JobTracker - http://$IP:50030/" echo -e "\n=========================================================================" } PseudoDistributed 2>&1 | tee -a pseudo.log PassphraselessSSH 2>&1 | tee -a pseudo.log Execute 2>&1 | tee -a pseudo.log |
脚本测试结果
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 |
[root@hadoop hadoop]# ./pseudo.sh 14/04/26 23:52:30 INFO namenode.NameNode: STARTUP_MSG: /************************************************************ STARTUP_MSG: Starting NameNode STARTUP_MSG: host = hadoop/216.34.94.184 STARTUP_MSG: args = [-format] STARTUP_MSG: version = 1.2.1 STARTUP_MSG: build = https://svn.apache.org/repos/asf/hadoop/common/branches/branch-1.2 -r 1503152; compiled by 'mattf' on Mon Jul 22 15:27:42 PDT 2013 STARTUP_MSG: java = 1.7.0_51 ************************************************************/ Re-format filesystem in /tmp/hadoop-root/dfs/name ? (Y or N) y Format aborted in /tmp/hadoop-root/dfs/name 14/04/26 23:52:40 INFO namenode.NameNode: SHUTDOWN_MSG: /************************************************************ SHUTDOWN_MSG: Shutting down NameNode at hadoop/216.34.94.184 ************************************************************/ starting namenode, logging to /var/log/hadoop/root/hadoop-root-namenode-hadoop.out localhost: starting datanode, logging to /var/log/hadoop/root/hadoop-root-datanode-hadoop.out localhost: starting secondarynamenode, logging to /var/log/hadoop/root/hadoop-root-secondarynamenode-hadoop.out starting jobtracker, logging to /var/log/hadoop/root/hadoop-root-jobtracker-hadoop.out localhost: starting tasktracker, logging to /var/log/hadoop/root/hadoop-root-tasktracker-hadoop.out ======================================================================== hadoop log dir : /var/log/hadoop/root NameNode - http://192.168.60.128:50070/ JobTracker - http://192.168.60.128:50030/ ========================================================================= |
通过宿主机上的浏览器访问NameNode和JobTracker的网络接口

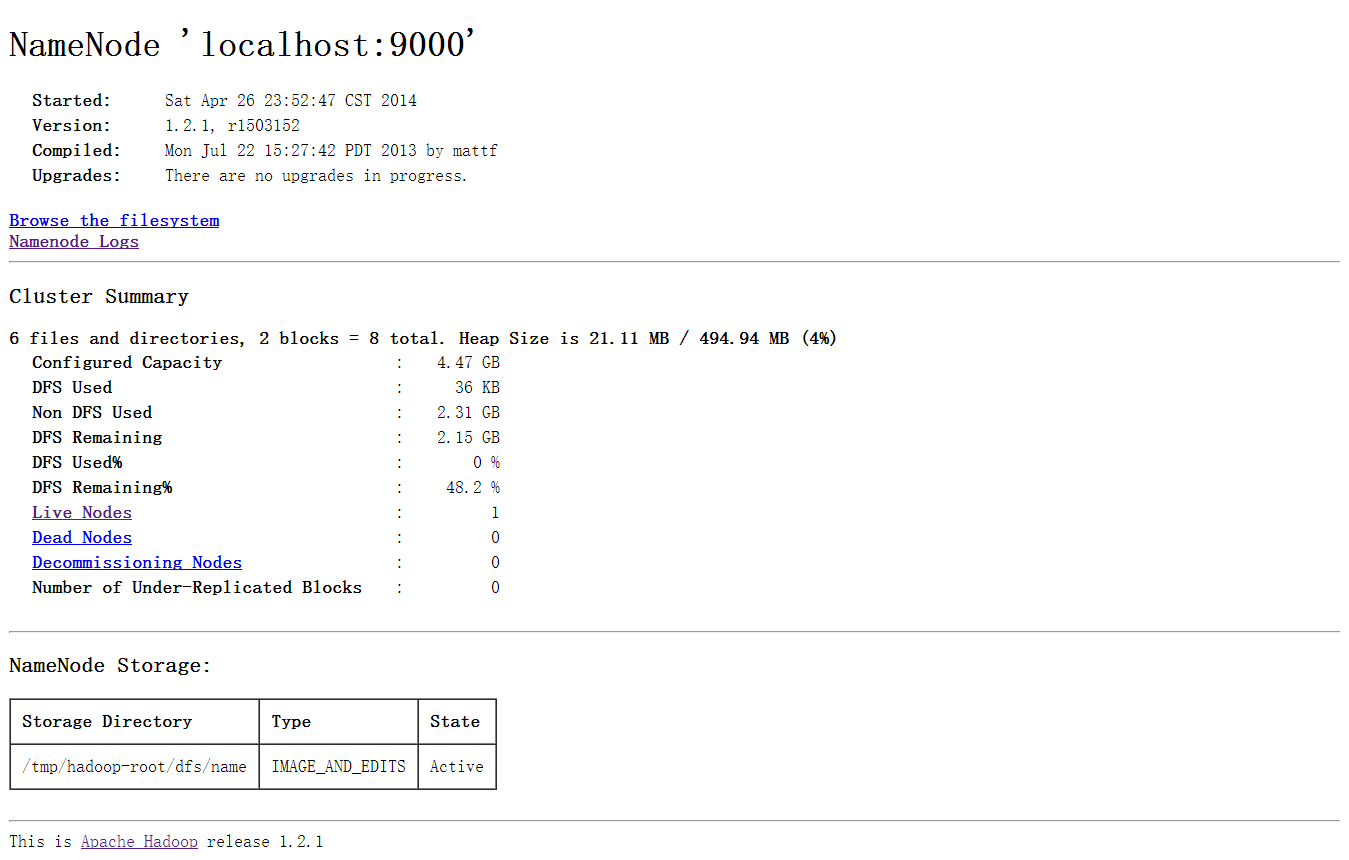

浏览器访问namenode的网络接口

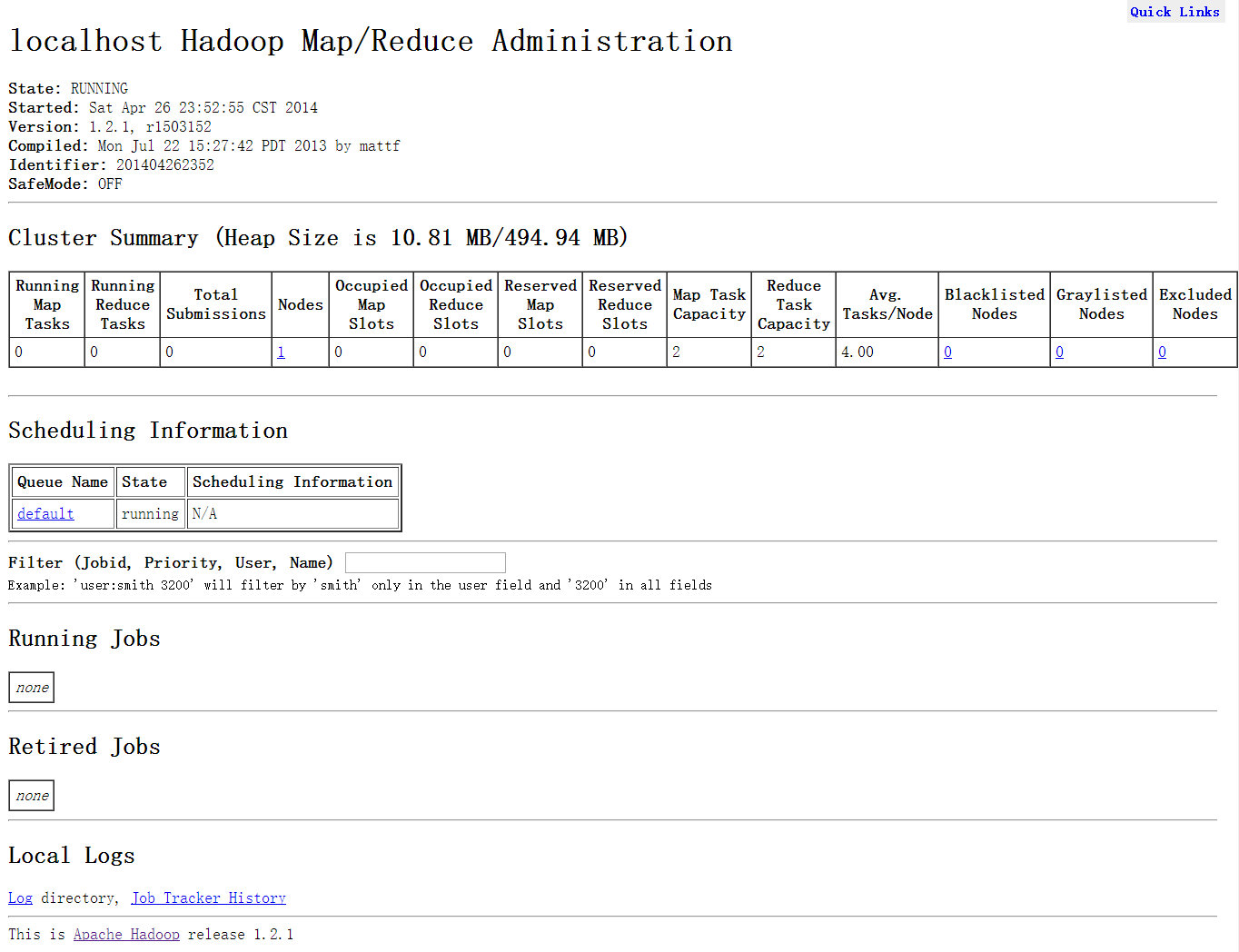

浏览器访问jobtracker网络接口
运行测试程序
将输入文件拷贝到分布式文件系统：
|
1 |
$ hadoop fs -put input input |

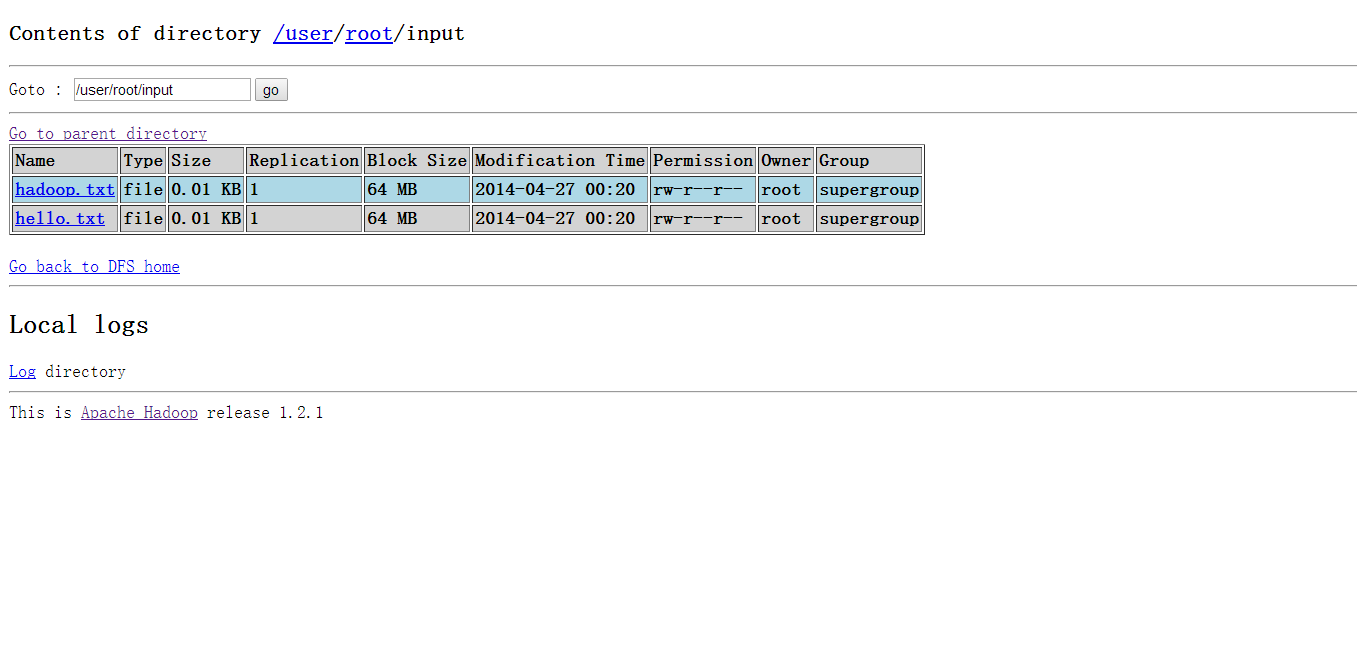

通过网络接口查看hdfs
通过NameNode网络接口查看hdfs文件系统
运行示例程序
|
1 |
[root@hadoop hadoop]# hadoop jar /usr/share/hadoop/hadoop-examples-1.2.1.jar wordcount input output |

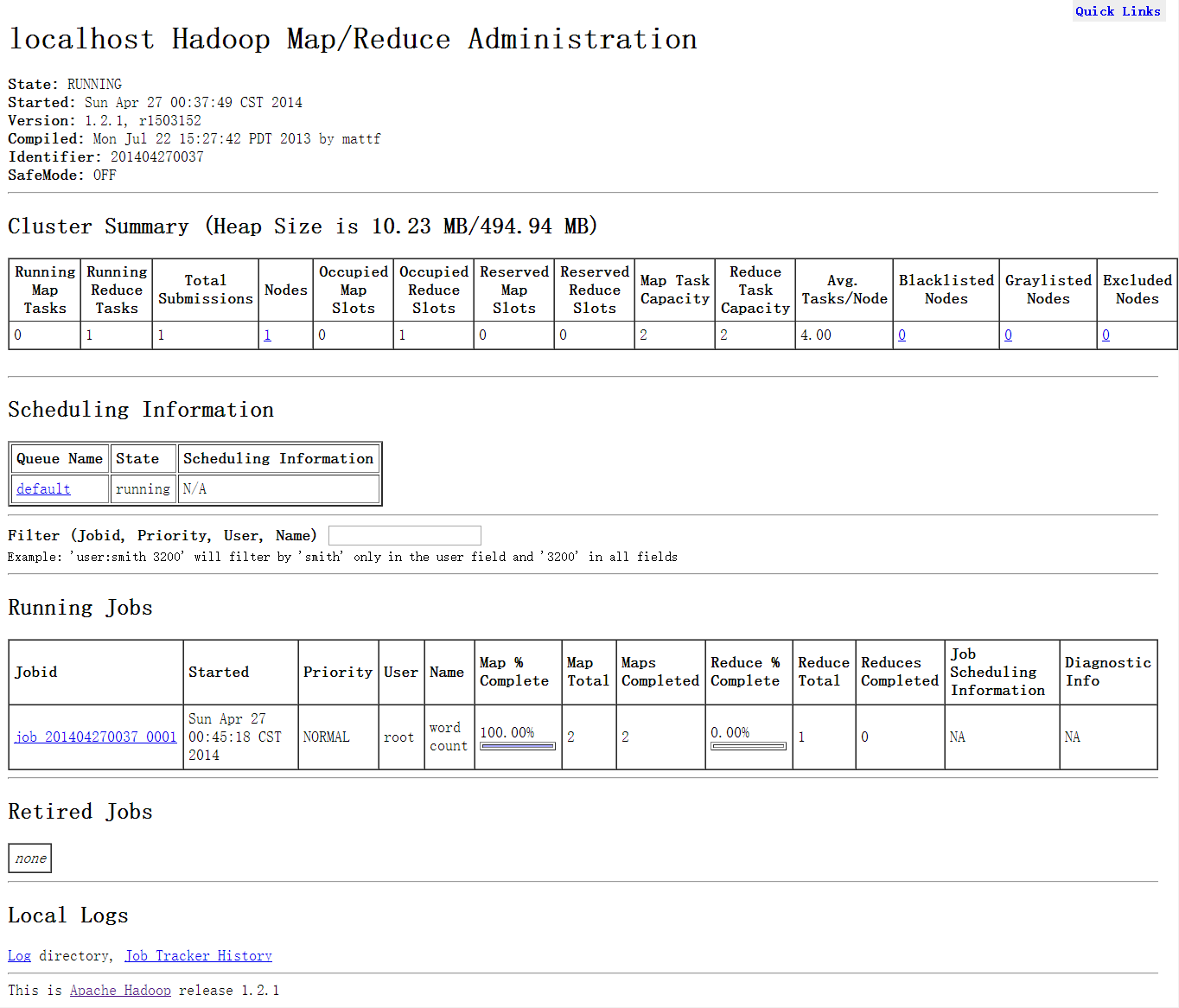

通过JobTracker网络接口查看执行状态
Wordcount执行状态
执行结果
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 |
[root@hadoop hadoop]# hadoop jar /usr/share/hadoop/hadoop-examples-1.2.1.jar wordcount input out2 14/04/27 03:34:56 INFO input.FileInputFormat: Total input paths to process : 2 14/04/27 03:34:56 INFO util.NativeCodeLoader: Loaded the native-hadoop library 14/04/27 03:34:56 WARN snappy.LoadSnappy: Snappy native library not loaded 14/04/27 03:34:57 INFO mapred.JobClient: Running job: job_201404270333_0001 14/04/27 03:34:58 INFO mapred.JobClient: map 0% reduce 0% 14/04/27 03:35:49 INFO mapred.JobClient: map 100% reduce 0% 14/04/27 03:36:16 INFO mapred.JobClient: map 100% reduce 100% 14/04/27 03:36:19 INFO mapred.JobClient: Job complete: job_201404270333_0001 14/04/27 03:36:19 INFO mapred.JobClient: Counters: 29 14/04/27 03:36:19 INFO mapred.JobClient: Job Counters 14/04/27 03:36:19 INFO mapred.JobClient: Launched reduce tasks=1 14/04/27 03:36:19 INFO mapred.JobClient: SLOTS_MILLIS_MAPS=72895 14/04/27 03:36:19 INFO mapred.JobClient: Total time spent by all reduces waiting after reserving slots (ms)=0 14/04/27 03:36:19 INFO mapred.JobClient: Total time spent by all maps waiting after reserving slots (ms)=0 14/04/27 03:36:19 INFO mapred.JobClient: Launched map tasks=2 14/04/27 03:36:19 INFO mapred.JobClient: Data-local map tasks=2 14/04/27 03:36:19 INFO mapred.JobClient: SLOTS_MILLIS_REDUCES=24880 14/04/27 03:36:19 INFO mapred.JobClient: File Output Format Counters 14/04/27 03:36:19 INFO mapred.JobClient: Bytes Written=25 14/04/27 03:36:19 INFO mapred.JobClient: FileSystemCounters 14/04/27 03:36:19 INFO mapred.JobClient: FILE_BYTES_READ=55 14/04/27 03:36:19 INFO mapred.JobClient: HDFS_BYTES_READ=260 14/04/27 03:36:19 INFO mapred.JobClient: FILE_BYTES_WRITTEN=164041 14/04/27 03:36:19 INFO mapred.JobClient: HDFS_BYTES_WRITTEN=25 14/04/27 03:36:19 INFO mapred.JobClient: File Input Format Counters 14/04/27 03:36:19 INFO mapred.JobClient: Bytes Read=25 14/04/27 03:36:19 INFO mapred.JobClient: Map-Reduce Framework 14/04/27 03:36:19 INFO mapred.JobClient: Map output materialized bytes=61 14/04/27 03:36:19 INFO mapred.JobClient: Map input records=2 14/04/27 03:36:19 INFO mapred.JobClient: Reduce shuffle bytes=61 14/04/27 03:36:19 INFO mapred.JobClient: Spilled Records=8 14/04/27 03:36:19 INFO mapred.JobClient: Map output bytes=41 14/04/27 03:36:19 INFO mapred.JobClient: Total committed heap usage (bytes)=414441472 14/04/27 03:36:19 INFO mapred.JobClient: CPU time spent (ms)=2910 14/04/27 03:36:19 INFO mapred.JobClient: Combine input records=4 14/04/27 03:36:19 INFO mapred.JobClient: SPLIT_RAW_BYTES=235 14/04/27 03:36:19 INFO mapred.JobClient: Reduce input records=4 14/04/27 03:36:19 INFO mapred.JobClient: Reduce input groups=3 14/04/27 03:36:19 INFO mapred.JobClient: Combine output records=4 14/04/27 03:36:19 INFO mapred.JobClient: Physical memory (bytes) snapshot=353439744 14/04/27 03:36:19 INFO mapred.JobClient: Reduce output records=3 14/04/27 03:36:19 INFO mapred.JobClient: Virtual memory (bytes) snapshot=2195972096 14/04/27 03:36:19 INFO mapred.JobClient: Map output records=4 |
查看结果
|
1 2 3 4 |
[root@hadoop hadoop]# hadoop fs -cat out2/* hadoop 1 hello 2 world 1 |
也可以将分布式文件系统上的文件拷贝到本地查看
|
1 2 3 4 5 6 |
[root@hadoop hadoop]# hadoop fs -get out2 out4 [root@hadoop hadoop]# cat out4/* cat: out4/_logs: Is a directory hadoop 1 hello 2 world 1 |
完成全部操作后，停止守护进程：
|
1 2 3 4 5 6 |
[root@hadoop hadoop]# stop-all.sh stopping jobtracker localhost: stopping tasktracker stopping namenode localhost: stopping datanode localhost: stopping secondarynamenode |
遇到的问题
宿主机不能访问网络接口
因为开启了iptables，所以需要添加相应端口，当然测试环境也可以直接将iptables关闭。
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
# Firewall configuration written by system-config-firewall # Manual customization of this file is not recommended. *filter :INPUT ACCEPT [0:0] :FORWARD ACCEPT [0:0] :OUTPUT ACCEPT [0:0] -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT -A INPUT -p icmp -j ACCEPT -A INPUT -i lo -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 22 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 50070 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 50030 -j ACCEPT -A INPUT -m state --state NEW -m tcp -p tcp --dport 50075 -j ACCEPT -A INPUT -j REJECT --reject-with icmp-host-prohibited -A FORWARD -j REJECT --reject-with icmp-host-prohibited COMMIT |
Browse the filesystem跳转地址不对
NameNode网络接口点击Browse the filesystem，跳转到localhost:50075。[2][3]
修改core-site.xml，将hdfs://localhost:9000改成虚拟机ip地址。(上面的脚本已经改写为自动配置为IP)。
根据几次改动的情况，这里也是可以填写域名的，只是要在访问的机器上能解析这个域名。因此公网环境中有DNS服务器的应该是可以设置域名的。
执行reduce的时候卡死
在/etc/hosts中添加主机名对应的ip地址 [4][5]。（已更新Hadoop安装脚本，会自动配置此项）
|
1 2 3 |
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4 ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6 127.0.0.1 hadoop #添加这一行 |
参考文献
[1]. Hadoop官方文档. http://hadoop.apache.org/docs/r1.2.1/single_node_setup.html
[2]. Stackoverflow. http://stackoverflow.com/questions/15254492/wrong-redirect-from-hadoop-hdfs-namenode-to-localhost50075
[3]. Iteye. http://yymmiinngg.iteye.com/blog/706909
[4].Stackoverflow. http://stackoverflow.com/questions/10165549/hadoop-wordcount-example-stuck-at-map-100-reduce-0
[5]. 李俊的博客. http://www.colorlight.cn/archives/32
